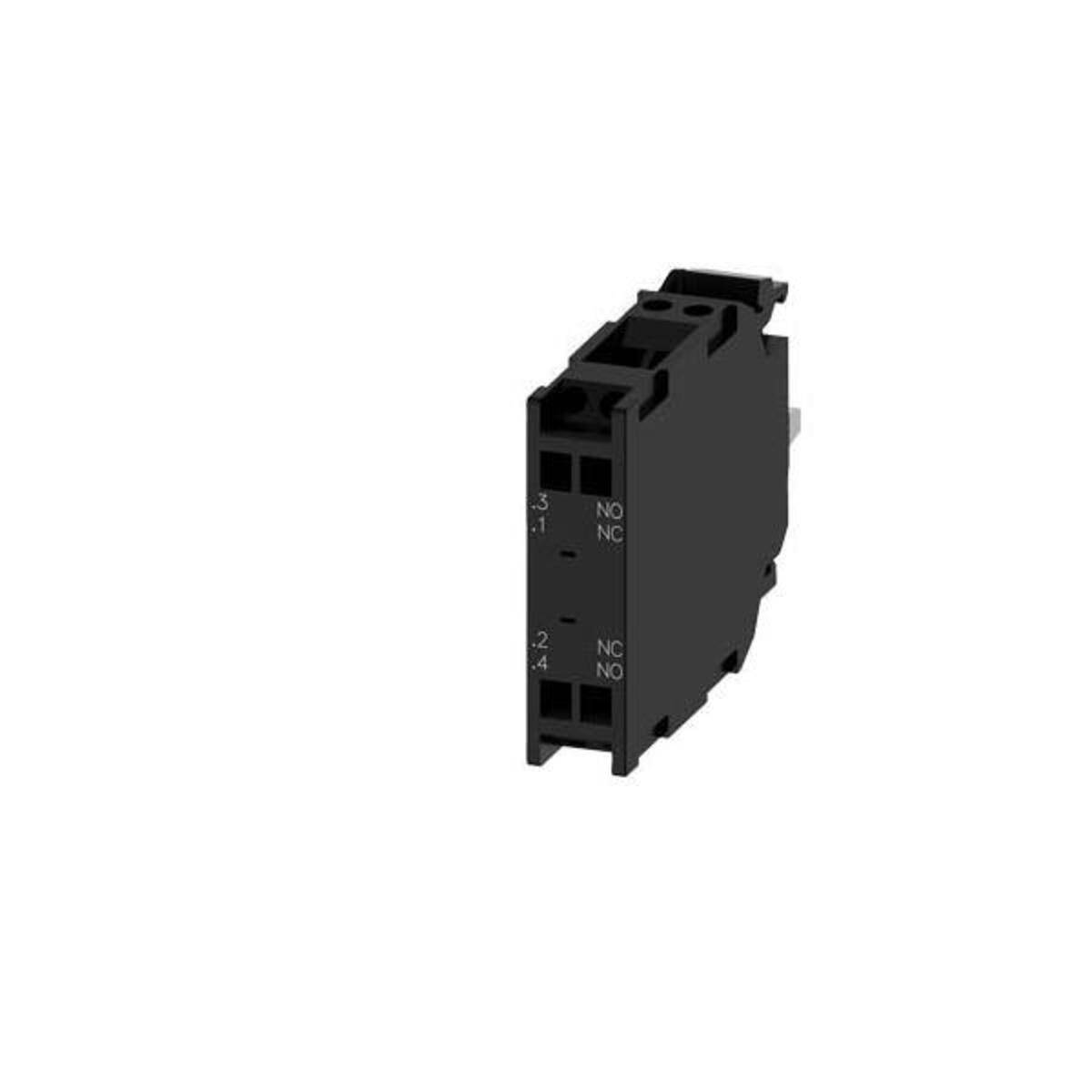

Siemens 3SU1400-1AA10-3FA0 Kontaktmodul 500 V DC/AC Passar till följande märken: Siemens 1 st
Typ av produkt
Kontaktmodul
Antal poler
2-polig
Nominell spänning
500 V DC/AC
Anslutning
Fjäderdraganslutning
Typ
3SU1400-1AA10-3FA0
Datablad (PDF)
EAN:
Fabrikatsnr.
Artikelnr.:
5 Set
Antal
Toal (129,00 kr / stycken)
129,00 kr
inkl. moms
Endast 5 Set kvar på lager
Tekniska specifikationer
- Kopplingsfrekvens / max [1/h]: 3600
- Produktfunktion / tvångöppning: Ja
- Användningsområde: För omkoppling av strömkretsar
- Stötspänningsmotståndskraft: 6 kV
- Föroreningsgrad: 3.
- Lämplighet för integrering/tryckväljare: Ja
- Lämplighet för integrering/frontelement: Ja
- Lämplig för integrering/upphängningsbrytare: Ja
- För integrering/hängknapp: Ja
- Kapslingsklass IP/anslutningsklämma: IP20
- Kapslingsklass IP / höljet: IP40
- Utförande av kontakt/hjälpkontakter: Silverlegering
- Isolationsspänning: 500 V
- Termisk ström 10 A.
- Typ av anslutningsbara ledarareor / för AWG-ledningar: 2x (24... 16)
- Typ av anslutningsbara ledarareor / enkeltrådig / utan ändhylsor: 2x (0,25... 1,5 m²)
- Typ av anslutningsbara ledarareor / fintrådig / med ändbearbetning: 2x (0,25... 0,75 m²)
- Typ av anslutningsbara ledarareor / fintrådig / utan ändbearbetning: 2x (0,25... 1,5 m²)
- Typ av produkt
Kontaktmodul
- Typ
3SU1400-1AA10-3FA0
- Antal poler
2-polig
- Kontaktmaterial
Silverlegering
- Hjälpkontakt typ
1 NO
1 NC
- Nominell spänning
500 V DC/AC
- Växelspänning (max.)
500 V DC/AC
- Driftström (max.)
10 A
- Passar till följande märken
Siemens
- Passar till följande serie
Siemens Serie Sirius
- Montageart
Panelinbyggnad
- Anslutning
Fjäderdraganslutning
- Elektrisk livslängd
10000000
- Mekanisk livslängd
10000000
- Min. temperatur
-25 °C
- Max. temperatur
+70 °C
- Bredd
9.8 mm
- Höjd
36 mm
- Djup
49.7 mm
- Mått.
(B x H x D) 9.8 x 36 x 49.7 mm
- Innehåll
1 st
- RoHS-godkänd
Ja
- Vikt
0.0180 kg
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 2862324 Siemens 3SU1400-1AA10-3FA0 Kontaktmodul 500 V DC/AC Passar till följande märken: Siemens 1 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 2862324 Siemens 3SU1400-1AA10-3FA0 Kontaktmodul 500 V DC/AC Passar till följande märken: Siemens 1 st
Beskrivning
Contact module with 2 contact elements, 1 NO+1 NC, spring-type terminal, for front plate mounting Contact module SIRIUS ACT for switching power circuits.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
