Siemens 3SU1156-6AA20-1AA0 Indikatorlampa högglans Röd 230 V/AC 1 st

1/4
Datablad (PDF)
EAN:
Fabrikatsnr.
Artikelnr.:
Leverans fre 6 nov.

Antal
Toal (335,20 kr / stycken)
335,20 kr
prav.tax.untaxed exkl. moms
exkl. 79,20 kr
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
utan ytterligare fraktkostnader
30 dagars öppet köp

Höjdpunkter & detaljer

Indikeringslampa med hållare och LED-modul 3SU

Tekniska specifikationer

Typ av produkt

Indikatorlampa

Utförande

Metall

Tillverkarfärg

Röd

Driftspänning

230 V/AC

Monterings-Ø

22 mm

n.rel.

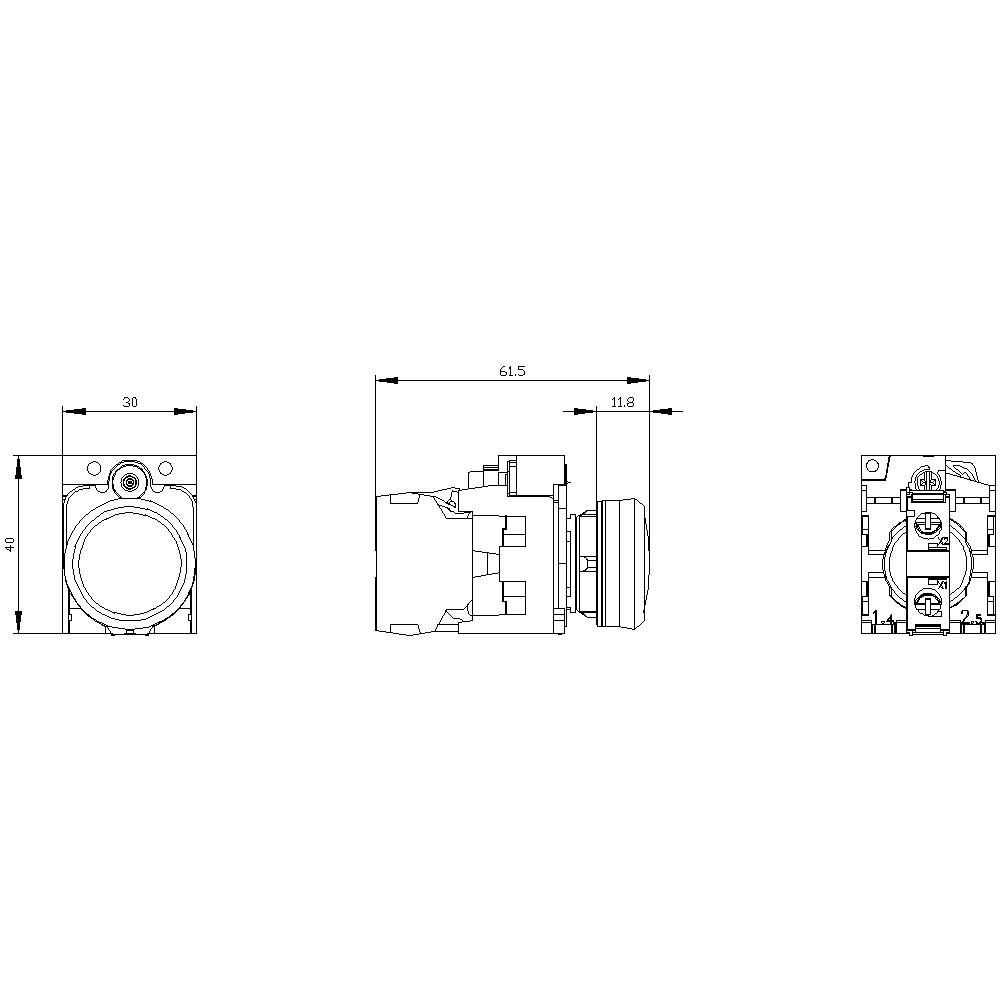

Mått.

(Ø) 22 mm

Anslutning

Skruv

Vikt

0.0616 kg

Innehåll

1 st

Diameter

22 mm

RoHS-godkänd

Ja

Switch/tryckknapp - specifikationer

högglans

IP67/IP69

Typ

3SU1156-6AA20-1AA0

Ljuskälla ingår

Ja

22.3 mm

AC

1

Other

29.5 mm

11.8 mm

IP67/IP69K

TRUE

Other

FALSE

Other

Other

UKCA

Ja

Dokument & nedladdningar

Datablad

Datablad 1379462 Siemens 3SU1156-6AA20-1AA0 Indikatorlampa högglans Röd 230 V/AC 1 st

Datablad 1379462 Siemens 3SU1156-6AA20-1AA0 Indikatorlampa högglans Röd 230 V/AC 1 st

Bruks- och säkerhetsanvisning

Bruks- och säkerhetsanvisning 1379462 Siemens 3SU1156-6AA20-1AA0 Indikatorlampa högglans Röd 230 V/AC 1 st

Information

Information 1379462 Siemens 3SU1156-6AA20-1AA0 Indikatorlampa högglans Röd 230 V/AC 1 st

Beskrivning

Indicator lights, 22 mm, round, metal, shiny, red, lens, smooth, with holder, LED module with integrated LED 230 V AC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
