Siemens 3SU1106-6AA60-1AA0 Lampa som varnar platt Vit 230 V/AC 1 st
Datablad (PDF)
EAN:
Fabrikatsnr.
Artikelnr.:
3 Styck
Antal
Toal (231,20 kr / stycken)
231,20 kr
exkl. moms
Endast 3 Styck kvar på lager
Höjdpunkter & detaljer
Indikeringslampa med hållare och LED-modul 3SU
Guide till
Tekniska specifikationer
- Material av manövreringselement: Plast
- Typ av produkt
Lampa som varnar
- Utförande
: Plast
- Tillverkarfärg
Vit
- Driftspänning
230 V/AC

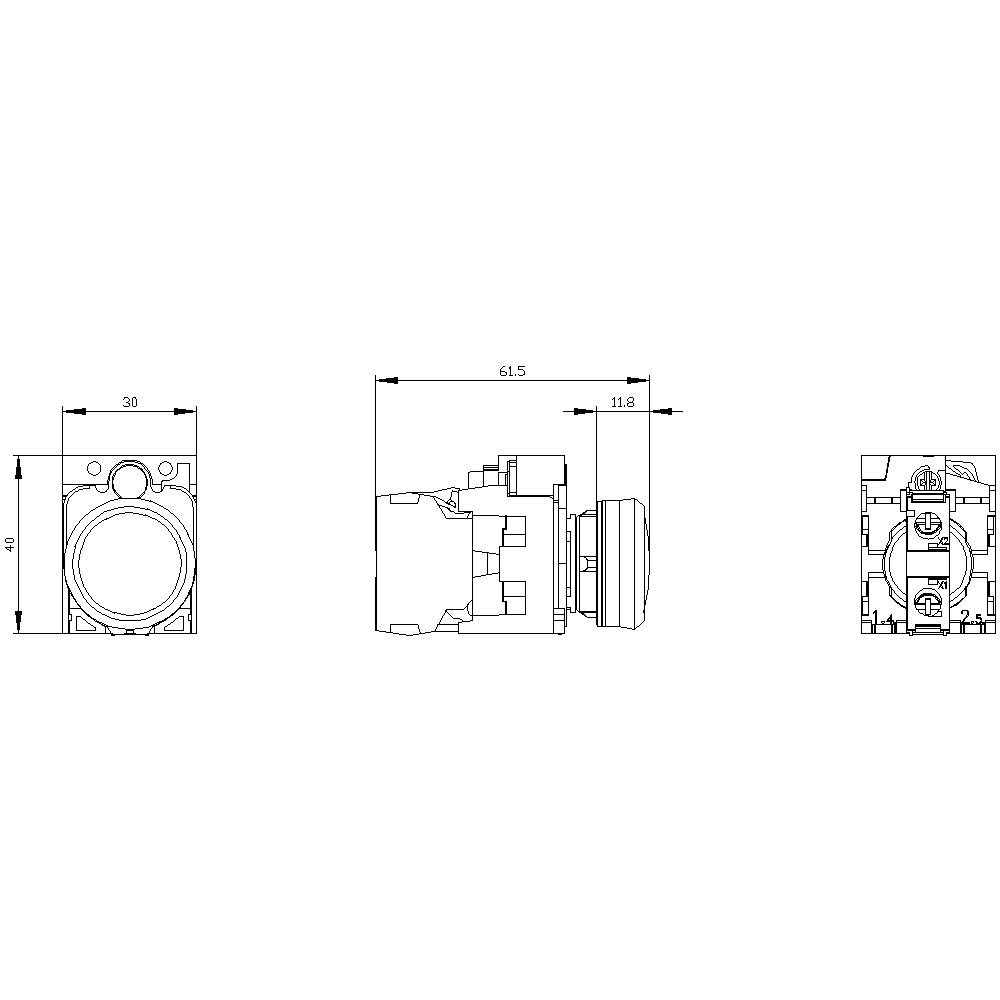

- Monterings-Ø
22 mm
n.rel.
- Mått.
(Ø x H) 29.45 mm x 40 mm
- Anslutning
Skruv
- Frontplatta max.
22 mm
- Innehåll
1 st
- Bredd
30 mm
- Höjd
40 mm
- Diameter
29.45 mm
- RoHS-godkänd
Ja
- Switch/tryckknapp - specifikationer
platt
IP66
IP67
IP69/IP69K
- Max. temperatur
+70 °C
- Min. temperatur
-25 °C
- Typ
3SU1106-6AA60-1AA0
- Ljuskälla ingår
Ja
22.3 mm
AC
1
Other
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 1379629 Siemens 3SU1106-6AA60-1AA0 Lampa som varnar platt Vit 230 V/AC 1 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 1379629 Siemens 3SU1106-6AA60-1AA0 Lampa som varnar platt Vit 230 V/AC 1 st
Information
Information 1379629 Siemens 3SU1106-6AA60-1AA0 Lampa som varnar platt Vit 230 V/AC 1 st
Beskrivning

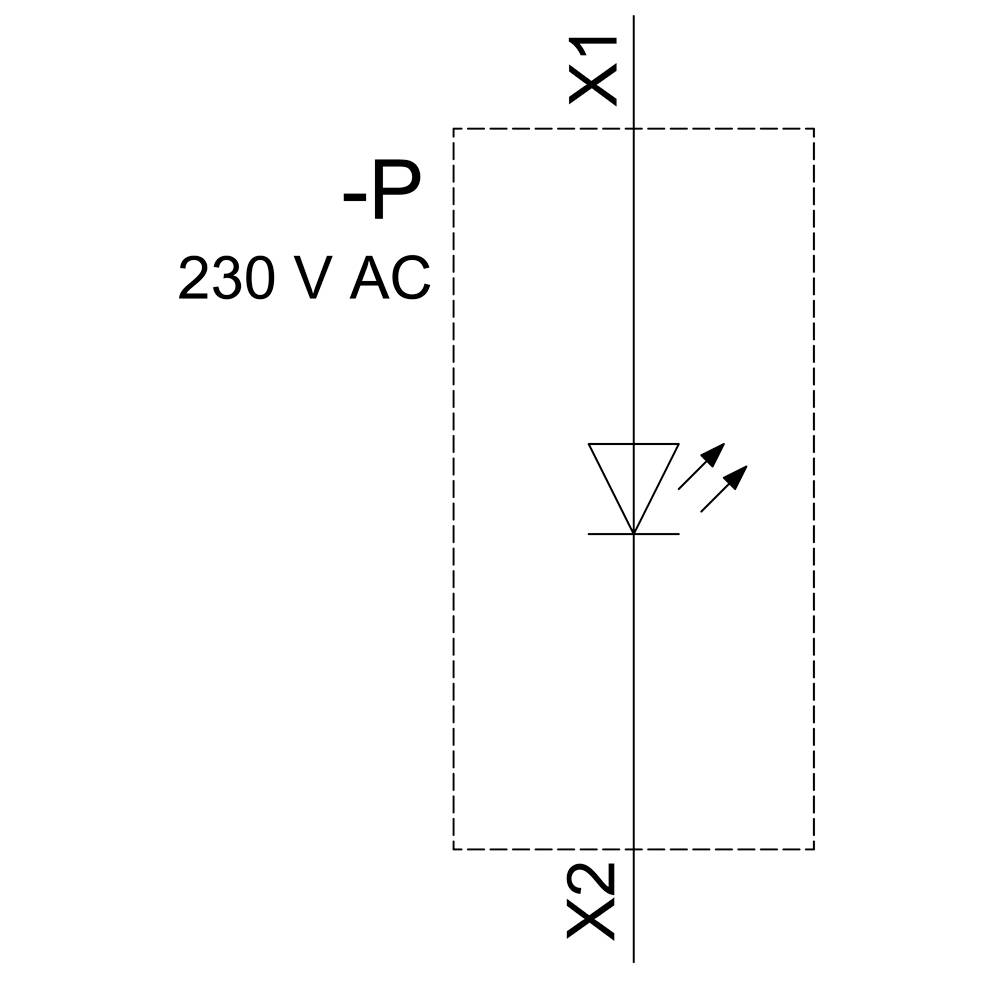

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
