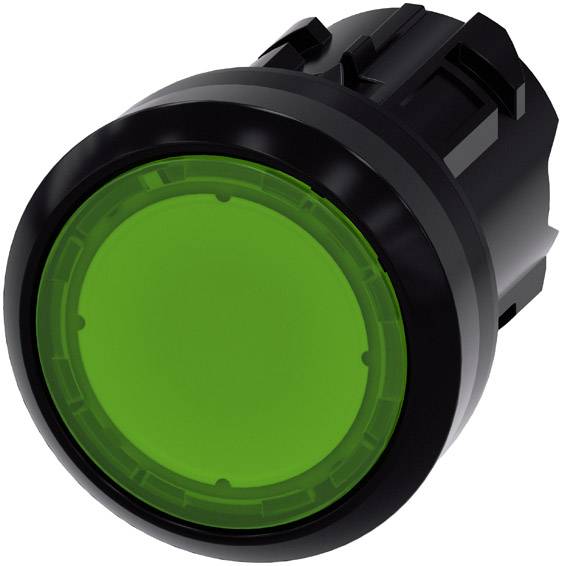

Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Tryckknapp för lampa Flat ställdon, Plastfrontring Plastkolv Grön 1 st Singl
Datablad (PDF)
EAN:
Fabrikatsnr.
Artikelnr.:
16 Styck
Antal
Toal (139,00 kr / stycken)
139,00 kr
inkl. moms
30 dagars öppet köp
Tekniska specifikationer
- Förpackningstyp
Single
- Typ av produkt
Tryckknapp för lampa
- Switch/tryckknapp - specifikationer
Flat ställdon
Plastfrontring
- Typ av ljus
Områdesbelysning
- Aktiveringstyp
Plastkolv
- Ljusfärg
Grön
- Tillverkarfärg
Grön
- Kapslingsfärg
Grön
- Tryck-motiv
Utan
- Anslutning
externt kontaktelement
externt LED-element
- Form
rund
- Frontplattsurtag
22 mm mm
- Funktioner
momentan
- Mekanisk livslängd
3
- Monterings-Ø
22 mm
IP66
IP67
IP69 K (i inbyggt tillstånd)
- Min. temperatur
-25 °C
- Max. temperatur
+70 °C

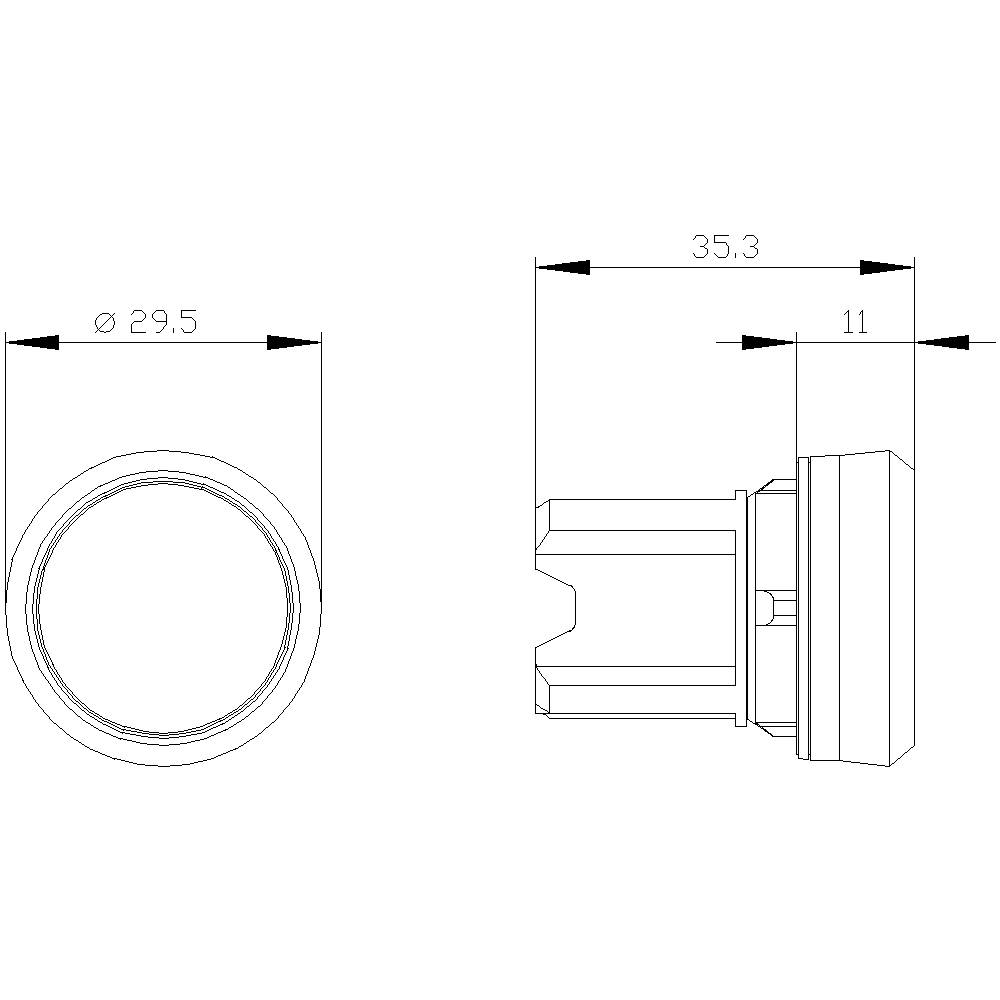

- Bredd
29.5 mm
- Höjd
29.5 mm
- Diameter
22 mm
- Innehåll
1 st
- Mått.
(Ø x H) 22 mm x 29.5 mm
- RoHS-godkänd
Ja
- Vikt
18 g
- Typ
3SU1001-0AB40-0AA0
22.3 mm
Green
TRUE
1
FALSE
FALSE
Black
Other
FALSE
Plastic
TRUE
Round
FALSE
Other
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Tryckknapp för lampa Flat ställdon, Plastfrontring Plastkolv Grön 1 st Singl
Datablad 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Tryckknapp för lampa Flat ställdon, Plastfrontring Plastkolv Grön 1 st Singl
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Tryckknapp för lampa Flat ställdon, Plastfrontring Plastkolv Grön 1 st Singl
Information
Information 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Tryckknapp för lampa Flat ställdon, Plastfrontring Plastkolv Grön 1 st Singl
Beskrivning
Illuminated pushbutton, 22 mm, round, plastic, green, pushbutton, flat momentary contact type Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

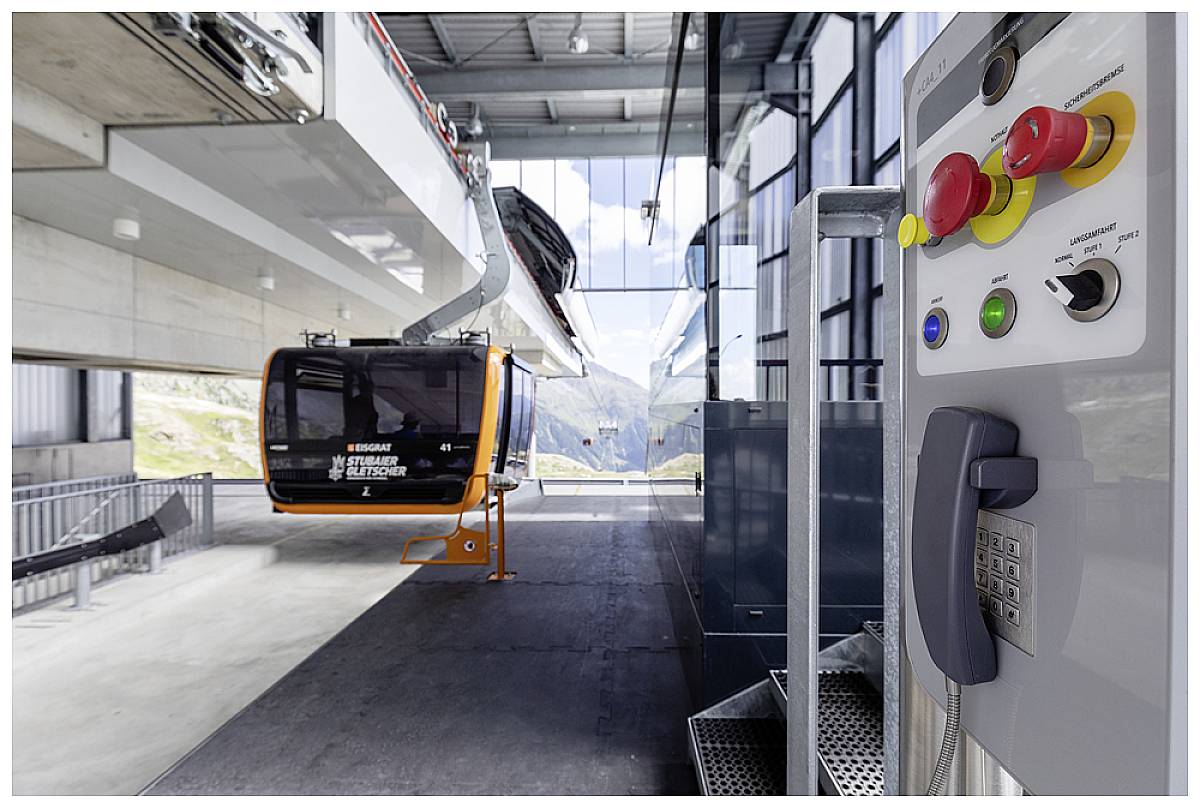

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
