Antal (förpackningsstorlek 50 st)
Toal (39,84 kr / stycken)
2 392,00 kr
-17 %
1 992,00 kr
exkl. moms
Fri frakt
30 dagars öppet köp
Höjdpunkter & detaljer

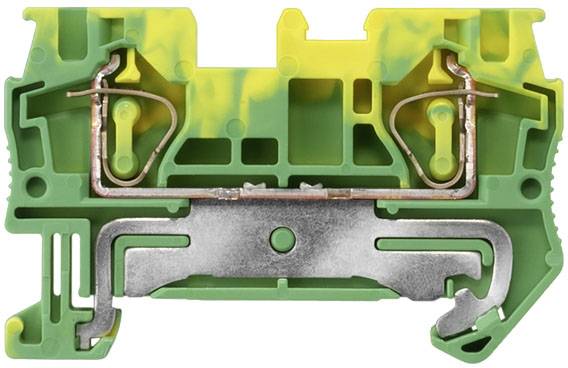

Kopplingsplint
Viktig information!
Tekniska specifikationer
- Anslutningsbar ledararea / fintrådig / med trådändhylsor / max: 4 mm
- ledararea / fintrådig / med trådändhylsor / minimala: 0.2 mm
- anslutningsbar ledararea / flertrådig / maximal: 6 mm
- anslutningsbar ledararea / flertrådig / minimalt: 0.5 mm Antal
- terminaler / per klämnivå: 2
- monteringssätt: Din-skena 35 mm
- brännbarhetsklass enligt UL 94: V0
- höjd / för lågbyggd montering: 36,8 mm
- klämavstånd: 6,2 mm
- material / isoleringskropp: Termoplast
- / anslutningsplint: Övre
- produktkomponent / krävs / ändplatta: nej
- omgivningstemperatur / under drift / max: 35 °C
- omgivningstemperatur / under drift / minimum: -25 °C.
- Typ av produkt
Skyddsledare terminal
- Anslutning
Fjäderdraganslutning
- Tvärsnitt flexibelt (min.)
4 mm²
- Tvärsnitt flexibelt (max.)
4 mm²
- Tvärsnitt styv (min.)
0.14 mm²
- Tvärsnitt styv (max.)
6 mm²
- Terminalbredd
6.2 mm
- Antal serier
1
- Antal poler
2
- Tillverkarfärg
Gröngul
- avisolering längd (max.)
10 mm
- Tillverkarnr.
8WH20000CG07
- Innehåll
50 st
- Typ
8WH2000-0CG07
- Höjd
36.8 mm
- Längd
56 mm
- RoHS-godkänd
Ja
- Vikt
12.7 g
- Antändlighetsklass
V0
- Färganslutningselement
Gröngul
- Isolationsmaterial
Termoplast
DIN rail (top hat rail) 35 mm
Other
6.15
55.9 mm
35.25 mm
56 m
V0
6.2 mm
36.8 mm
FALSE
Spring clamp connection
Spring clamp connection
FALSE
1
2
Other
- UKCA
Ej tillämpligt
Dokument & nedladdningar
Datablad
Datablad 2264020 Siemens 8WH20000CG07 Skyddsledare terminal 6.2 mm Fjäderdraganslutning Gröngul 50 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 2264020 Siemens 8WH20000CG07 Skyddsledare terminal 6.2 mm Fjäderdraganslutning Gröngul 50 st
Beskrivning
PE terminals with spring-loaded connection, Cross-section: 0.5-4 mm2, Width: 6.2mm, Color: green-yellow Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety - only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Tillbehör
(*Alla priser är exkl. moms.)De nödvändiga tillbehören behövs för att kunna använda artikeln som beskrivs
