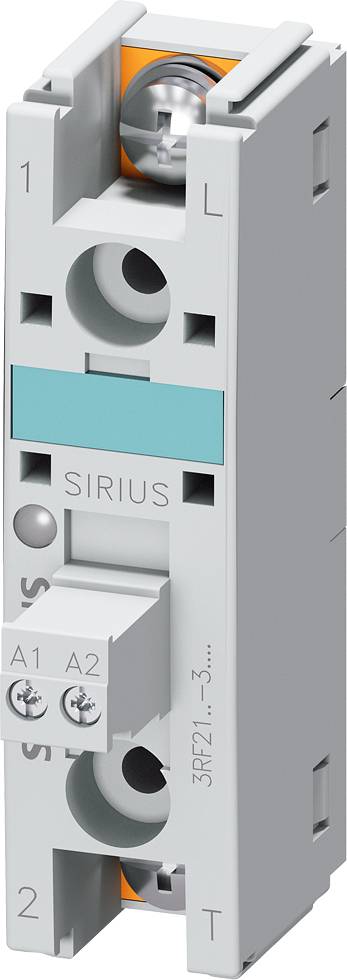

Siemens Halvledar-relä 3RF21903AA24 90 A Växelspänning (max.): 460 V/AC Nollspänning 1 st
EAN:
Fabrikatsnr.
Artikelnr.:
Förpackningstyp
Piece
Typ av produkt
Halvledar-relä
Styrspänning (min.)
110 V/AC
Styrspänning (max.)
230 V/AC
Växelspänning (max.)
460 V/AC
Datablad (PDF)
Antal
Toal (1 032,00 kr / stycken)
1 032,00 kr
exkl. moms
Fri frakt
30 dagars öppet köp
Höjdpunkter & detaljer
1-fas SSR 3RF21
- bredd 22,5 mm
Tekniska specifikationer
- Förpackningstyp
Piece
- Typ av produkt
Halvledar-relä
- Typ
3RF2190-3AA24
- Anslutningstyp
Nollspänning
- Anslutning
Ögla 3 mm
Ögla 5 mm
- Styrspänning (min.)
110 V/AC
- Styrspänning (max.)
230 V/AC
- Styrspänningsområde
110 - 230 V/AC
- Styrström (max.)
15 mA
- Spänningsström (max.)
1150 A
- Kopplingsspänning (min.)
48 V/AC
- Växelspänning (max.)
460 V/AC
- Belastningsström (max.)
90 A
- Utgångsspänning (min.)
48 V/AC
- Utgångsspänning (max.)
460 V/AC
- Utgångsström max.
90 A
- Kontakttyp
1 NO
- Min. temperatur
-25 °C
- Max. temperatur
+60 °C
IP00

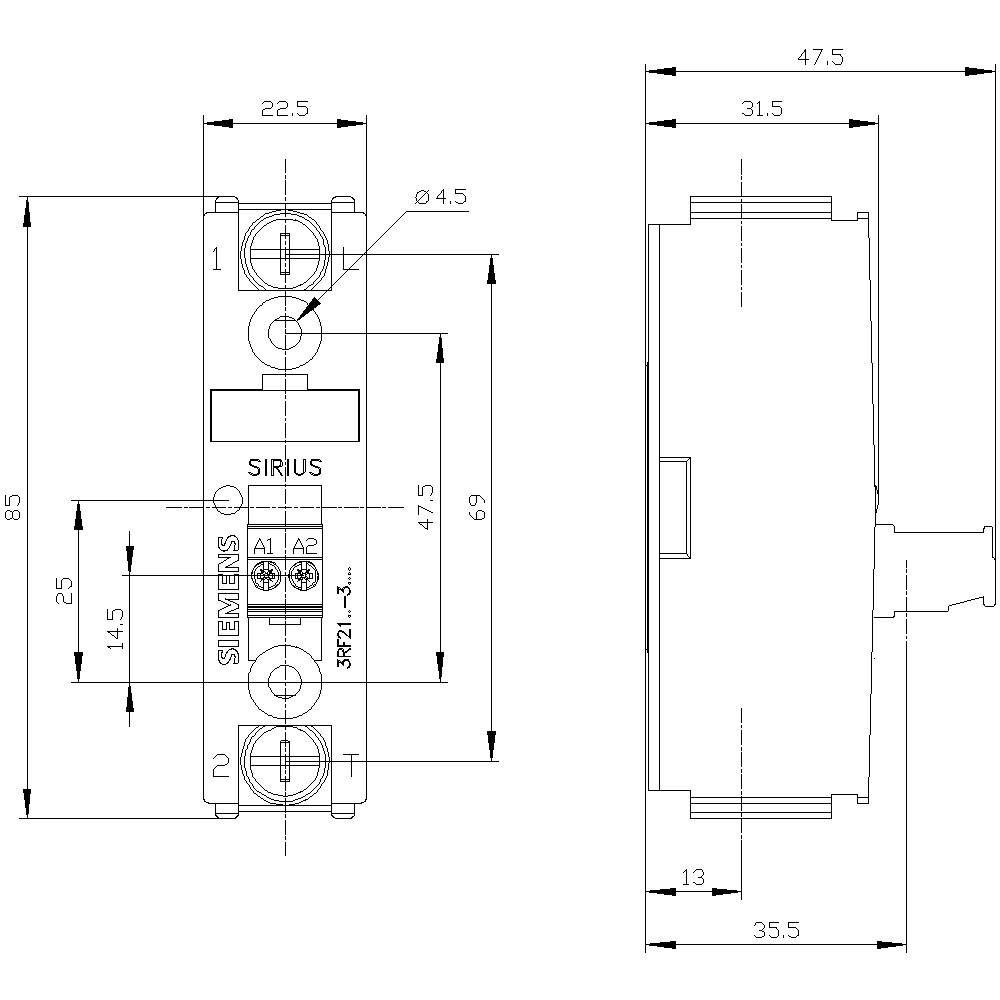

- Bredd
22.5 mm
- Höjd
85 mm
- Djup
48 mm
- Vikt
220 g
- RoHS-godkänd
Ja
- Driftström (max.)
90 A
- Innehåll
1 st
1
TRUE
90 A
AC
88 A
- UKCA
Ej tillämpligt
Dokument & nedladdningar
Datablad
Datablad 1430866 Siemens Halvledar-relä 3RF21903AA24 90 A Växelspänning (max.): 460 V/AC Nollspänning 1 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 1430866 Siemens Halvledar-relä 3RF21903AA24 90 A Växelspänning (max.): 460 V/AC Nollspänning 1 st
Beskrivning
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 90 A 48-460 V / 110-230 V AC Ring cable connection solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
