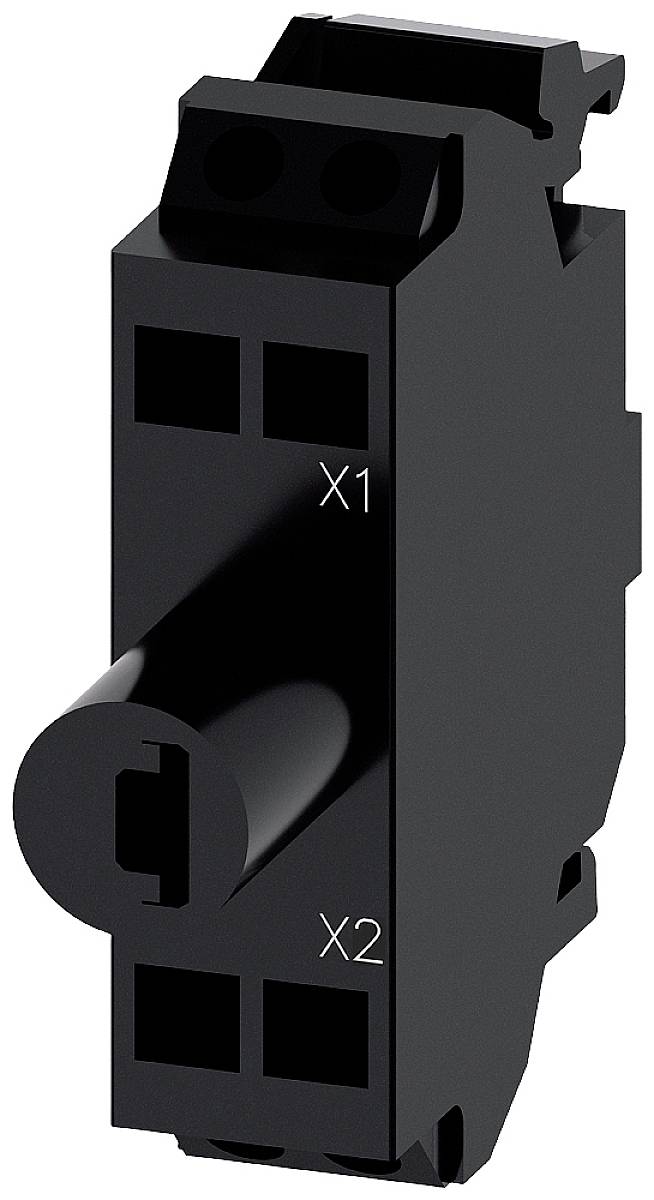

Siemens 3SU1401-2BB40-3AA0 LED-modul för markmontering Grön 24 V DC/AC 5 st
EAN:
Fabrikatsnr.
Artikelnr.:
Datablad (PDF)
2 Set
Antal (Set)
Du sparar
förpackningspris (exkl. moms)
1
-
520,00 kr
3
3% = 16,90 kr
503,10 kr
5
5% = 23,66 kr
496,34 kr
10
5% = 28,13 kr
491,87 kr
25
6% = 33,22 kr
486,78 kr
Mängdrabatter varierar beroende på säljaren
Du sparar 0,00 kr
Antal (förpackningsstorlek 5 st)
Toal (104,00 kr / stycken)
520,00 kr
exkl. moms
Endast 2 Set kvar på lager
Tekniska specifikationer
- Typ av ljuskälla: Lysdiod
- Produktkomponent / diod: Ja
- Produktkomponent / ljuskälla: Ja
- Vibrationstålighet: 10... 500 Hz 5g
- Typ av anslutningsbara ledarareor / för AWG-ledningar: 2x (24... 16)
- Typ av anslutningsbara ledarareor / enkeltrådig / utan ändhylsor: 2x (0,25... 1,5 m²)
- Typ av anslutningsbara ledarareor / fintrådig / med ändbearbetning: 2x (0,25... 0,75 m²)
- Typ av anslutningsbara ledarareor / fintrådig / utan ändbearbetning: 2x (0,25... 1,5 m²)
- Kopplingsström maximalt 2 A.
- Isolationsspänning: 320 V
- Ljusstyrka minimum: 900 mcd
- Ljusstyrka maximalt 1400 mcd
- Föroreningsgrad: 3.
- Typ av produkt
LED-modul
- Switch/tryckknapp - specifikationer
för markmontering
- Anslutning
Fjäderdraganslutning
- Utförande
Med integrerad lysdiod
- Ljusfärg
Grön
- Växelspänning
24 V DC/AC
- Växelström (max)
25 mA
IP20
IP40
- Genomslagshållfasthet
4 kV
- Min. temperatur
-25 °C
- Max. temperatur
+70 °C
- Bredd
9.8 mm
- Höjd
36 mm
- Elektrisk livslängd
100 000
- Monteringssätt
Golvmontering
- Innehåll
5 st

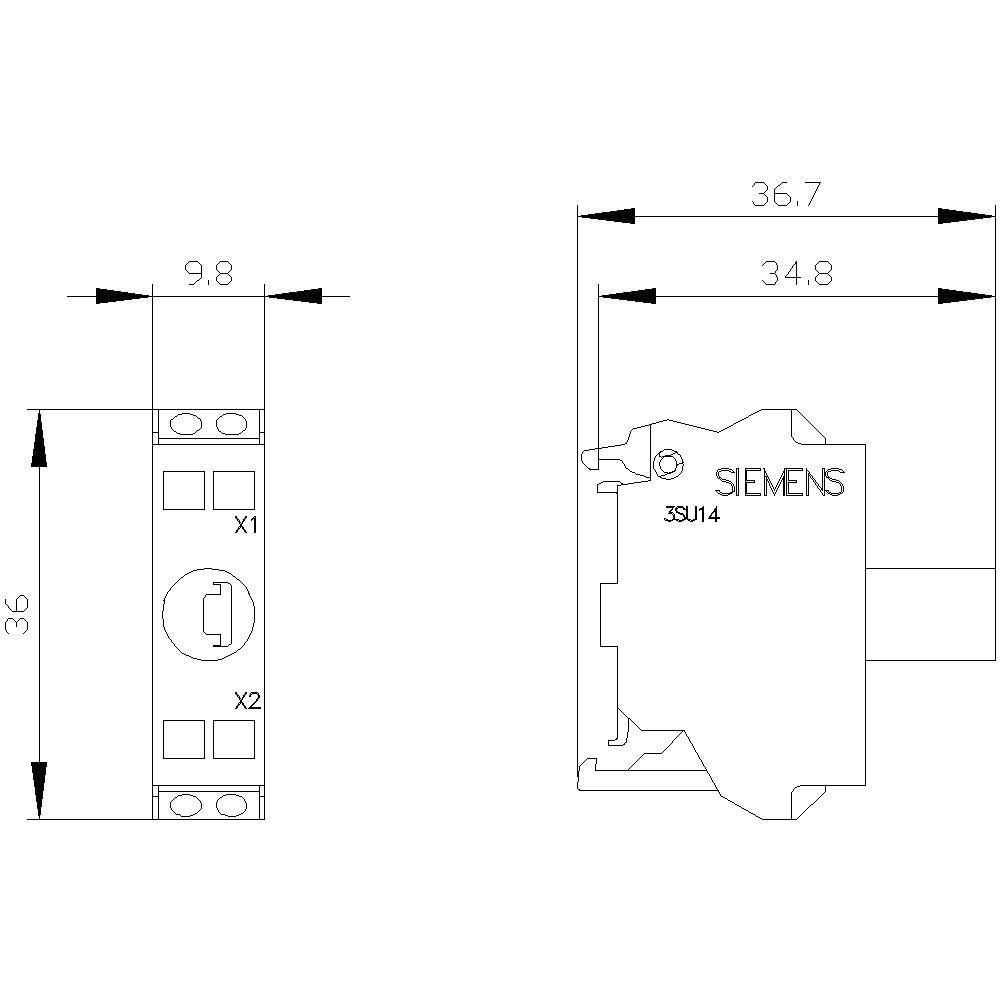

- Mått.
(B x H x D) 9.8 x 36 x 29.4 mm
- RoHS-godkänd
Ja
- Djup
29.4 mm
- Typ
3SU1401-2BB40-3AA0
- Ljuskälla ingår
Ja
None
FALSE
FALSE
TRUE
Green
LED
TRUE
Spring clamp connection
AC/DC
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 2262289 Siemens 3SU1401-2BB40-3AA0 LED-modul för markmontering Grön 24 V DC/AC 5 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 2262289 Siemens 3SU1401-2BB40-3AA0 LED-modul för markmontering Grön 24 V DC/AC 5 st
Beskrivning

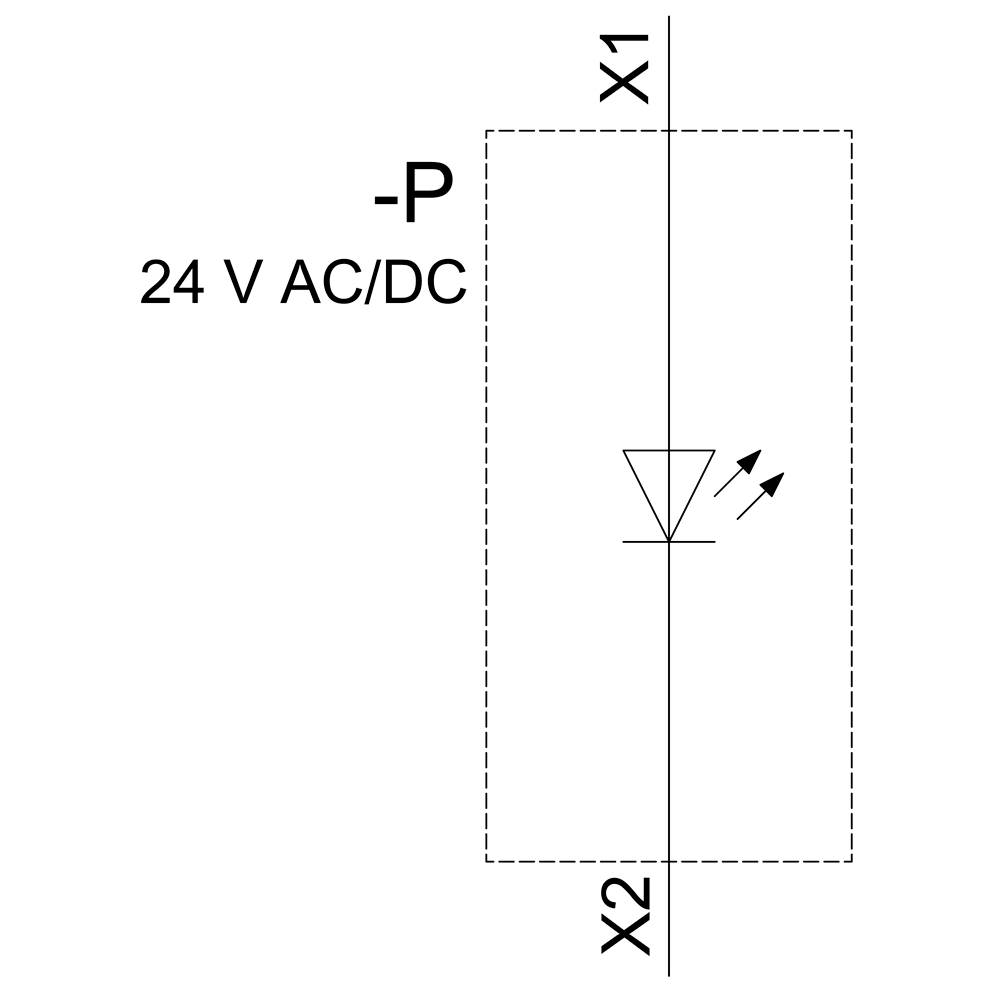

LED module with integrated LED 24 V AC/DC, green, Spring-loaded terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

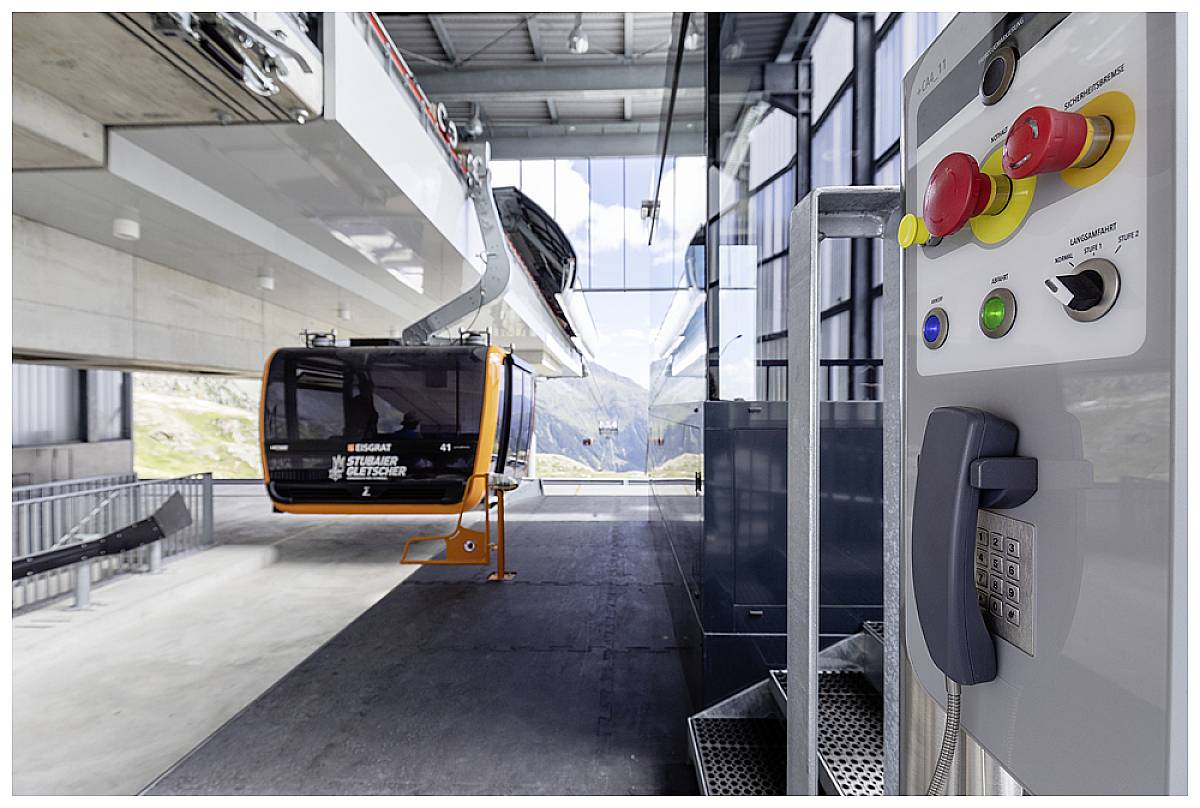

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
