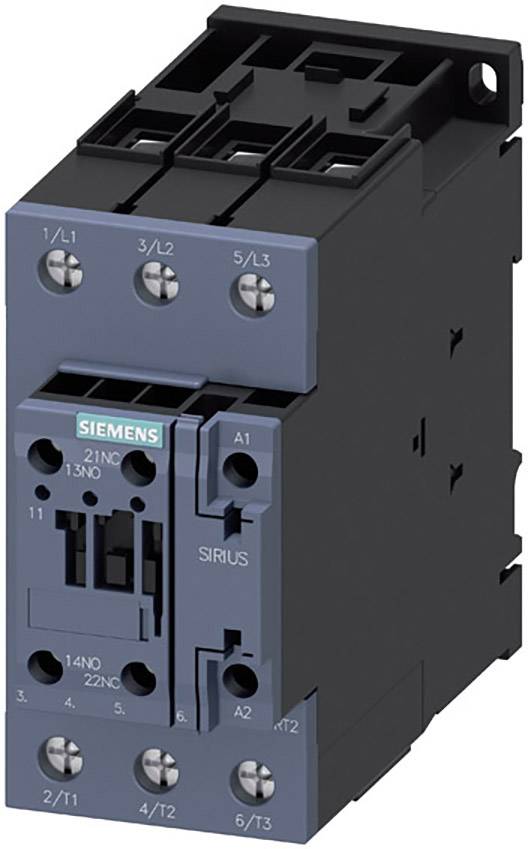

Siemens 3RT2035-1NB30 Kontaktor 3 NO 18.5 kW 24 V/DC, 24 V/AC 40 A med hjälpkontakt 1 st
EAN:
Fabrikatsnr.
Artikelnr.:
Typ av produkt
Kontaktor
Antal poler
3-polig
Nominell spänning
24 V/DC
24 V/AC
Lastström
40 A
Max. effekt
18.5 kW
Datablad (PDF)
Antal
Toal (2 312,00 kr / stycken)
2 312,00 kr
exkl. moms
Fri frakt
30 dagars öppet köp
Tekniska specifikationer
- Vikt: 1 115 kg
- Effektförlust: 2.2 W
- Typ av produkt
Kontaktor
- Typ
3RT2035-1NB30
- Konstruktionsstorlek
S2
- Antal poler
3-polig
- Kontakttyp
3 NO
- Hjälpkontakt typ
1 NO
1 NC
- Nominell spänning
24 V/DC
24 V/AC
- Styrspänning (min.)
20 V/DC
20 V/AC
- Styrspänning (max.)
33 V/DC
33 V/AC
- Styrspänningsområde
20, 20 - 33, 33 V/DC, V/AC
- Växelspänning (max.)
400 V/AC
- Lastström
40 A
18.5 kW
- funktioner
med hjälpkontakt
- Montageart
DIN-skena
- Anslutning
Skruvklämma
- Mekanisk livslängd
1.0E7
IP20
- Min. temperatur
-25 °C
- Max. temperatur
+60 °C
- Bredd
55 mm
- Höjd
114 mm
- Djup
130 mm

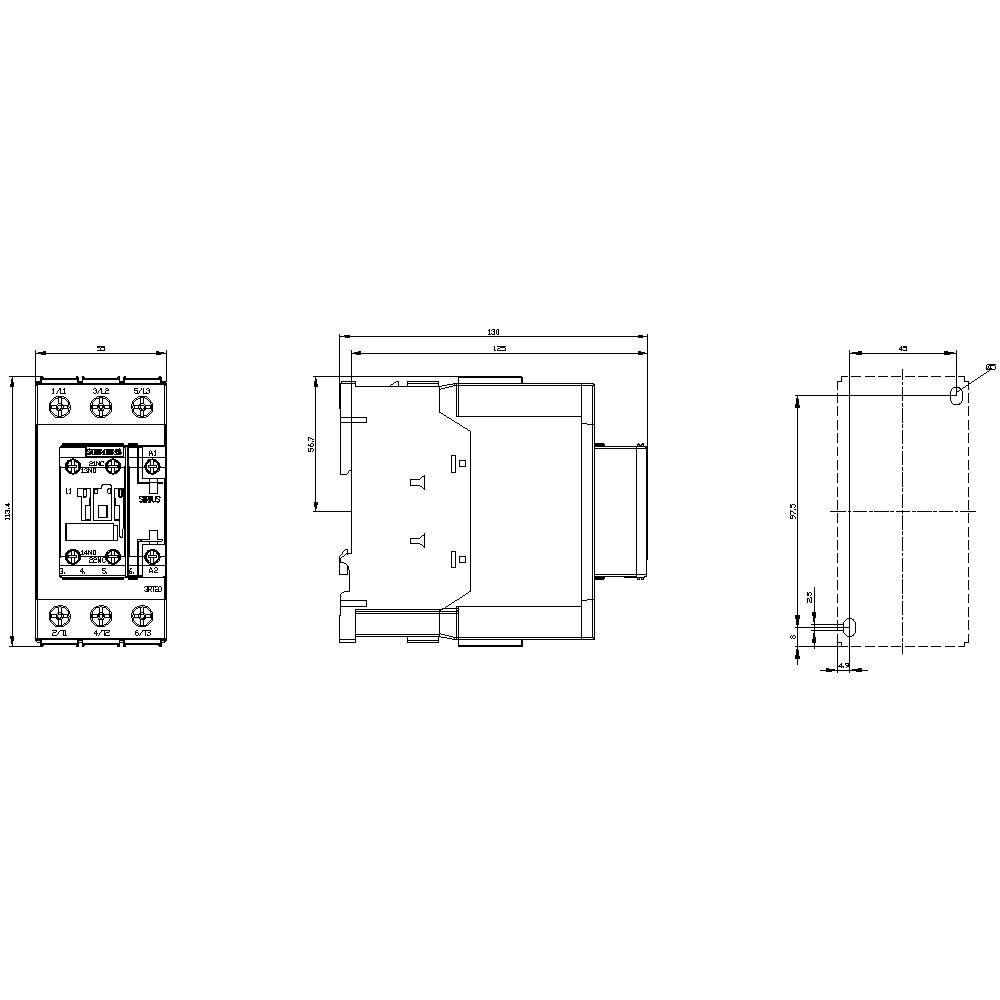

- Mått.
(B x H x D) 55 x 114 x 130 mm
- Innehåll
1 st
- RoHS-godkänd
Ja
TRUE
18.5 kW
3
1
1
41 A
60 A
20-33 V
20-33 V
20-33 V
Screw connection
AC/DC
35 A
22.065
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 1431002 Siemens 3RT2035-1NB30 Kontaktor 3 NO 18.5 kW 24 V/DC, 24 V/AC 40 A med hjälpkontakt 1 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 1431002 Siemens 3RT2035-1NB30 Kontaktor 3 NO 18.5 kW 24 V/DC, 24 V/AC 40 A med hjälpkontakt 1 st
Beskrivning

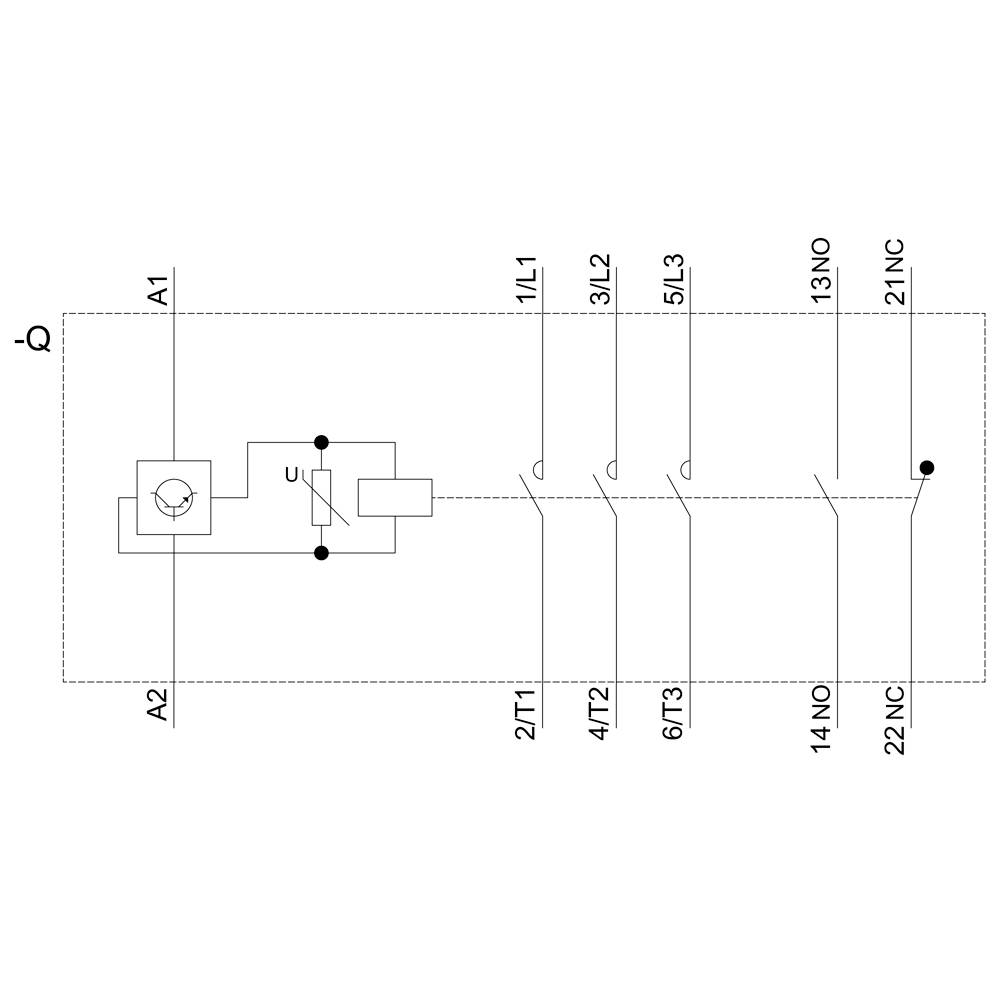

power contactor, AC-3 40 A, 18.5 kW / 400 V 1 NO + 1 NC, AC / DC 20-33 V, with varistor, 3-pole, Size S2, screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

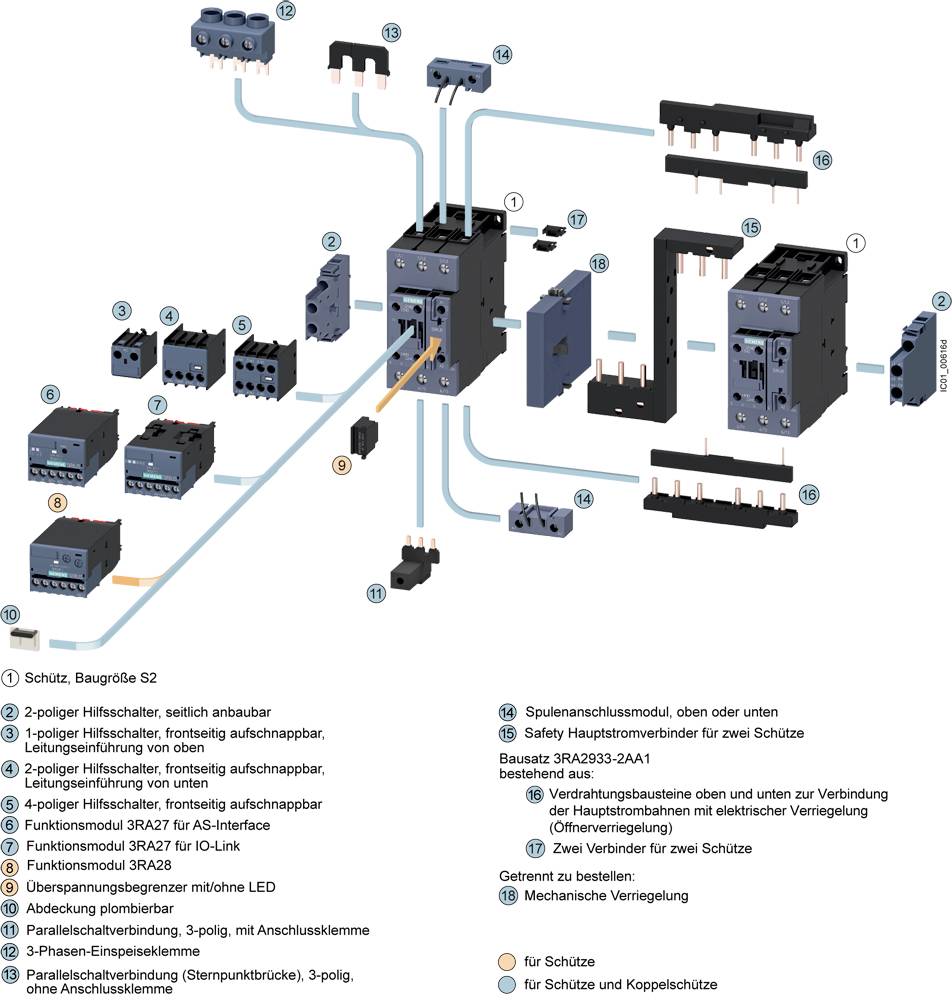

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Tips
Indikation på prestandadata: brukskategori AC-3, makt trefasmotorer vid 50 Hz och 400 V. Observera att det är produkten är skräddarsydd och därför undantas från tillbakadragande. Beställning, ingen tillbakadragande.
