Siemens 3RT2028-1BB40 Kontaktor 3 NO 18.5 kW 24 V/DC 38 A med hjälpkontakt 1 st
EAN:
Fabrikatsnr.
Artikelnr.:
Typ av produkt
Kontaktor
Antal poler
3-polig
Nominell spänning
24 V/DC
Lastström
38 A
Max. effekt
18.5 kW
Datablad (PDF)
9 Styck
Antal
Toal (2 072,00 kr / stycken)
2 072,00 kr
exkl. moms
Fri frakt
Endast 9 Styck kvar på lager
Tekniska specifikationer
- Vikt: 604 g
- Effektförlust: 3.8 W
- Typ av produkt
Kontaktor
- Typ
3RT2028-1BB40
- Konstruktionsstorlek
S0
- Antal poler
3-polig
- Kontakttyp
3 NO

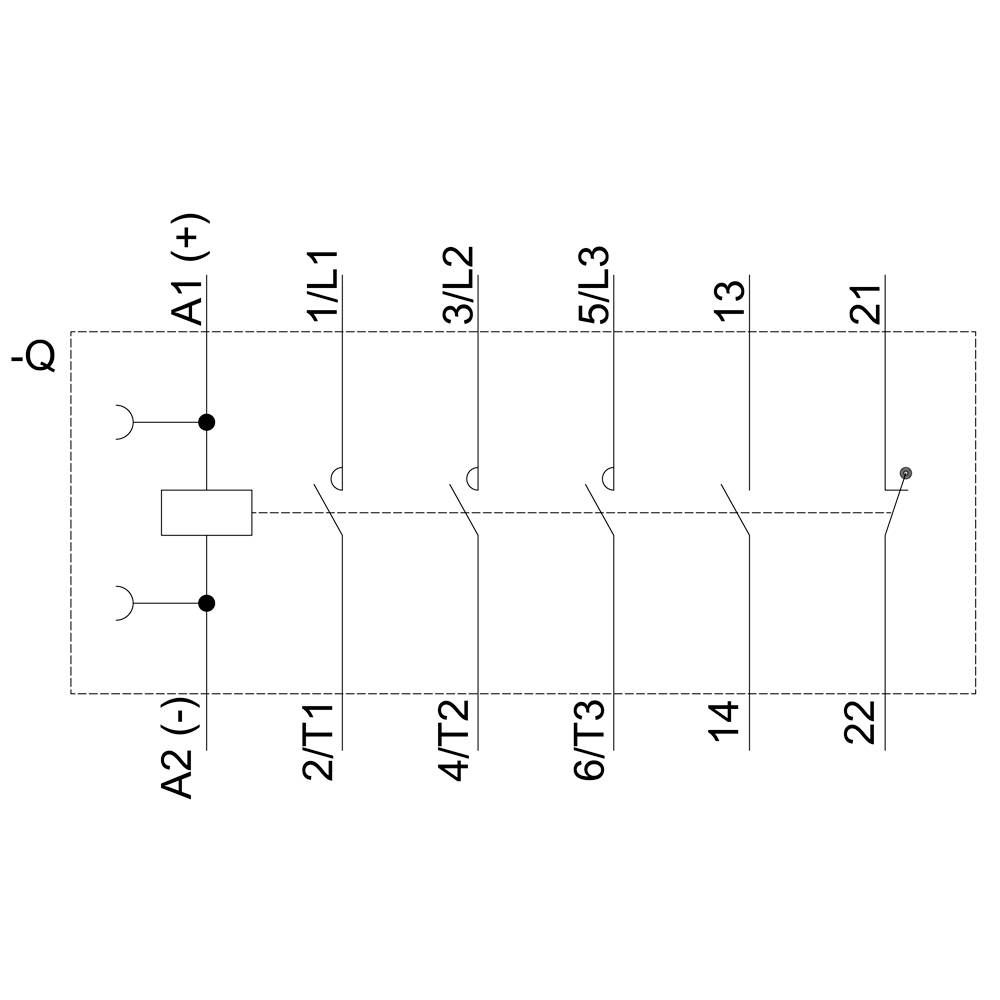

- Hjälpkontakt typ
1 NO
1 NC
- Nominell spänning
24 V/DC
- Växelspänning (max.)
400 V/AC
- Lastström
38 A
18.5 kW
- funktioner
med hjälpkontakt
- Montageart
DIN-skena
- Anslutning
Skruvklämma
- Mekanisk livslängd
1.0E7
IP20
- Min. temperatur
-25 °C
- Max. temperatur
+60 °C
- Bredd
45 mm
- Höjd
85 mm
- Djup
107 mm

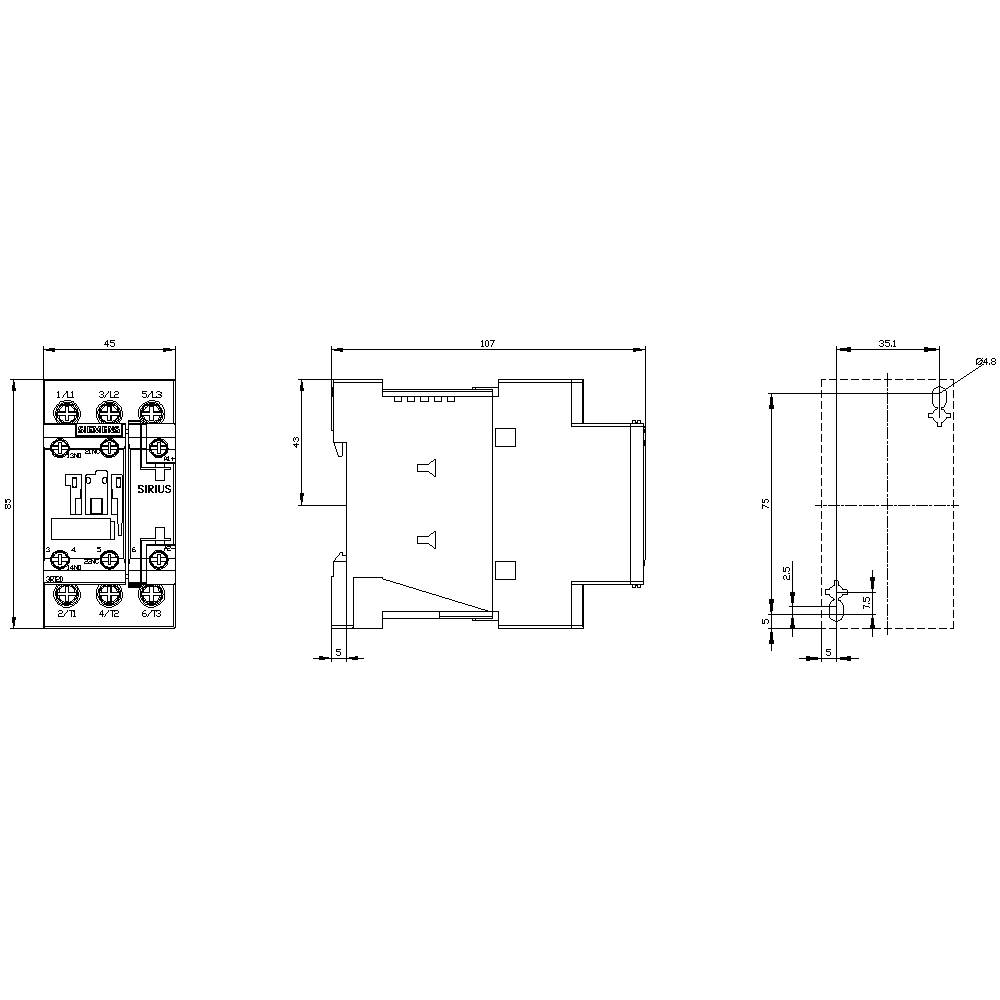

- Mått.
(B x H x D) 45 x 85 x 107 mm
- Innehåll
1 st
- RoHS-godkänd
Ja
TRUE
18.5 kW
3
1
1
38 A
50 A
24-24 V
Screw connection
DC
22 A
18.387
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 1431001 Siemens 3RT2028-1BB40 Kontaktor 3 NO 18.5 kW 24 V/DC 38 A med hjälpkontakt 1 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 1431001 Siemens 3RT2028-1BB40 Kontaktor 3 NO 18.5 kW 24 V/DC 38 A med hjälpkontakt 1 st
Beskrivning
Power contactor, AC-3 38 A, 18.5 kW / 400 V 1 NO + 1 NC, 24 V DC 3-pole, size S0 screw terminals Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

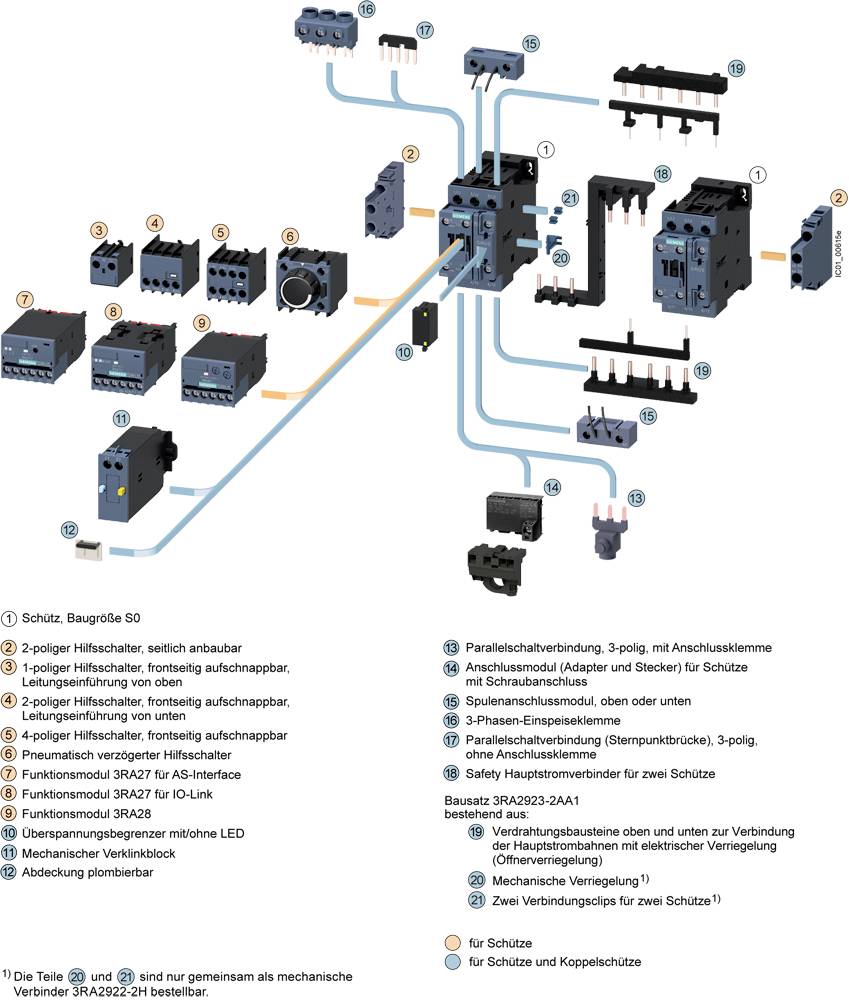

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Tips
Indikation på prestandadata: brukskategori AC-3, makt trefasmotorer vid 50 Hz och 400 V. Observera att det är produkten är skräddarsydd och därför undantas från tillbakadragande. Beställning, ingen tillbakadragande.
