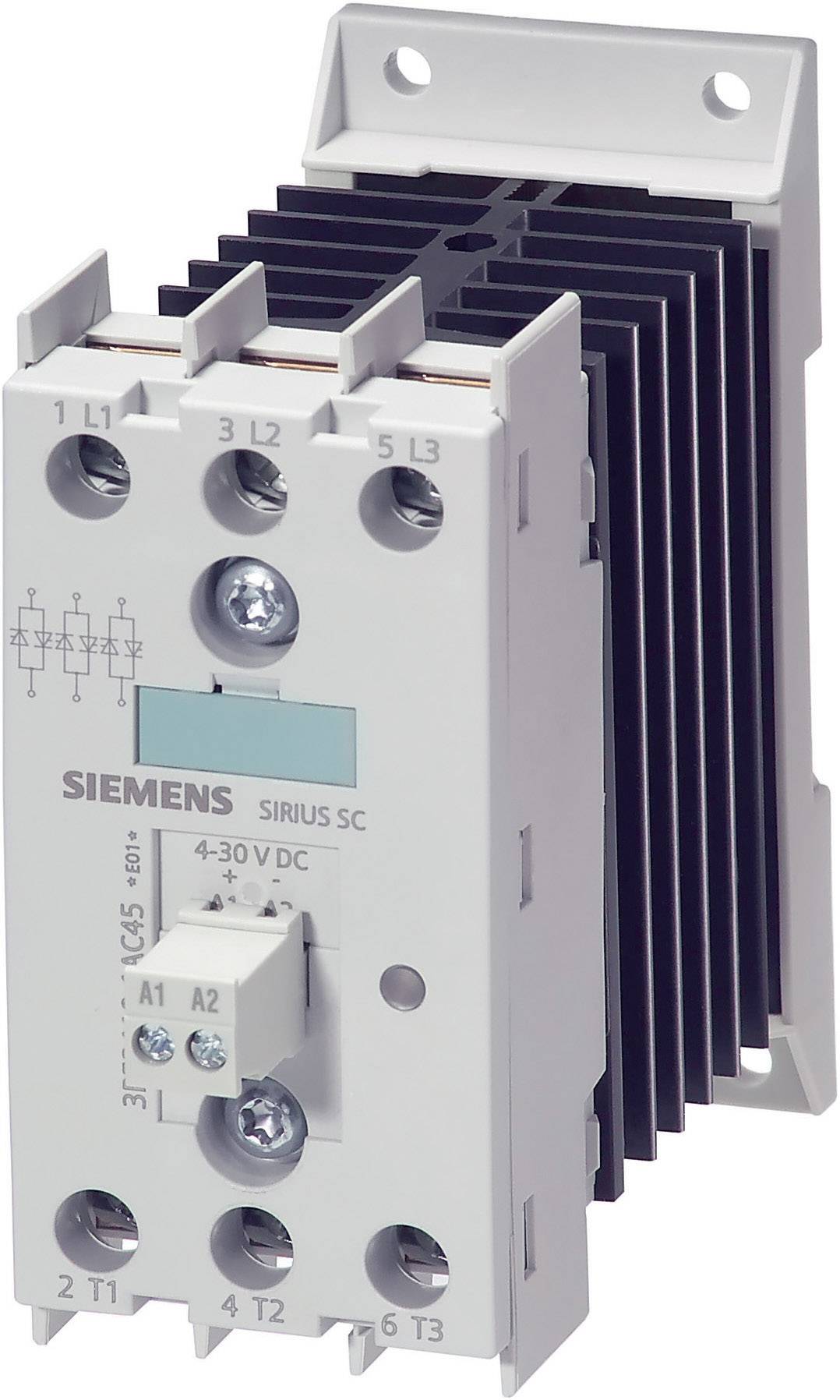

Siemens 3RF2420-1AC45 Halvledarkontaktor Nollspänning 3 NO 20 A 1 st
EAN:
Fabrikatsnr.
Artikelnr.:
Typ av produkt
Halvledarkontaktor
Antal poler
3-polig
Lastström
20 A
Anslutning
Skruvklämma
Typ
3RF2420-1AC45
Datablad (PDF)
3 Styck
Antal
Toal (1 912,00 kr / stycken)
1 912,00 kr
exkl. moms
Fri frakt
Endast 3 Styck kvar på lager
Tekniska specifikationer
- Halvledarskydd 3-fas 3RF2 AC 51 / 20 A / 40 °C 48-600 V/DC 4-30 V 3-fas styras skruvanslutning spärrspänning 1200 V
- Typ av produkt
Halvledarkontaktor
- Typ
3RF2420-1AC45
- Antal poler
3-polig
- Anslutningstyp
Nollspänning
- Kontakttyp
3 NO
- Styrspänning (min.)
4 V/DC
- Styrspänning (max.)
30 V/DC
- Styrspänningsområde
4 - 30 V/DC
- Kopplingsspänning (min.)
48 V/AC
- Växelspänning (max.)
600 V/AC
- Lastström
20 A
- Montageart
DIN-skena
- Anslutning
Skruvklämma
IP20
- Min. temperatur
-25 °C
- Max. temperatur
+60 °C
- Bredd
90 mm
- Höjd
100 mm
- Djup
112.5 mm

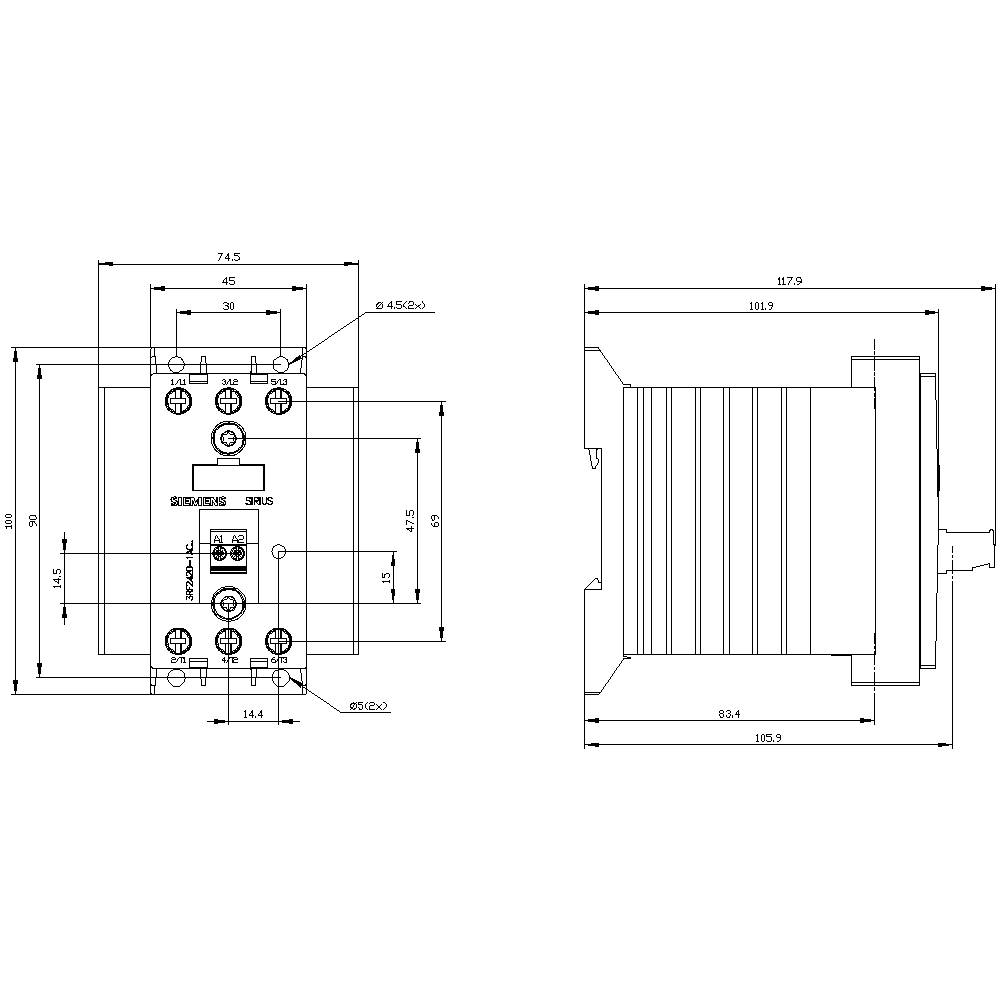

- Mått.
(B x H x D) 90 x 100 x 112.5 mm
- Innehåll
1 st
- RoHS-godkänd
Ja
- Typ
3RF2420-1AC45
- Belastningsström
20 A
3
TRUE
4-30 V
22 A
DC
22 A
- UKCA
Ja
Dokument & nedladdningar
Datablad
Datablad 185999 Siemens 3RF2420-1AC45 Halvledarkontaktor Nollspänning 3 NO 20 A 1 st
Bruks- och säkerhetsanvisning
Bruks- och säkerhetsanvisning 185999 Siemens 3RF2420-1AC45 Halvledarkontaktor Nollspänning 3 NO 20 A 1 st
Deklaration om överensstämmelse
Deklaration om överensstämmelse 185999 Siemens 3RF2420-1AC45 Halvledarkontaktor Nollspänning 3 NO 20 A 1 st
Beskrivning
Solid-state contactor 3-phase 3RF2 AC 51 / 20 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state contactor SIRIUS 3RF24 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.

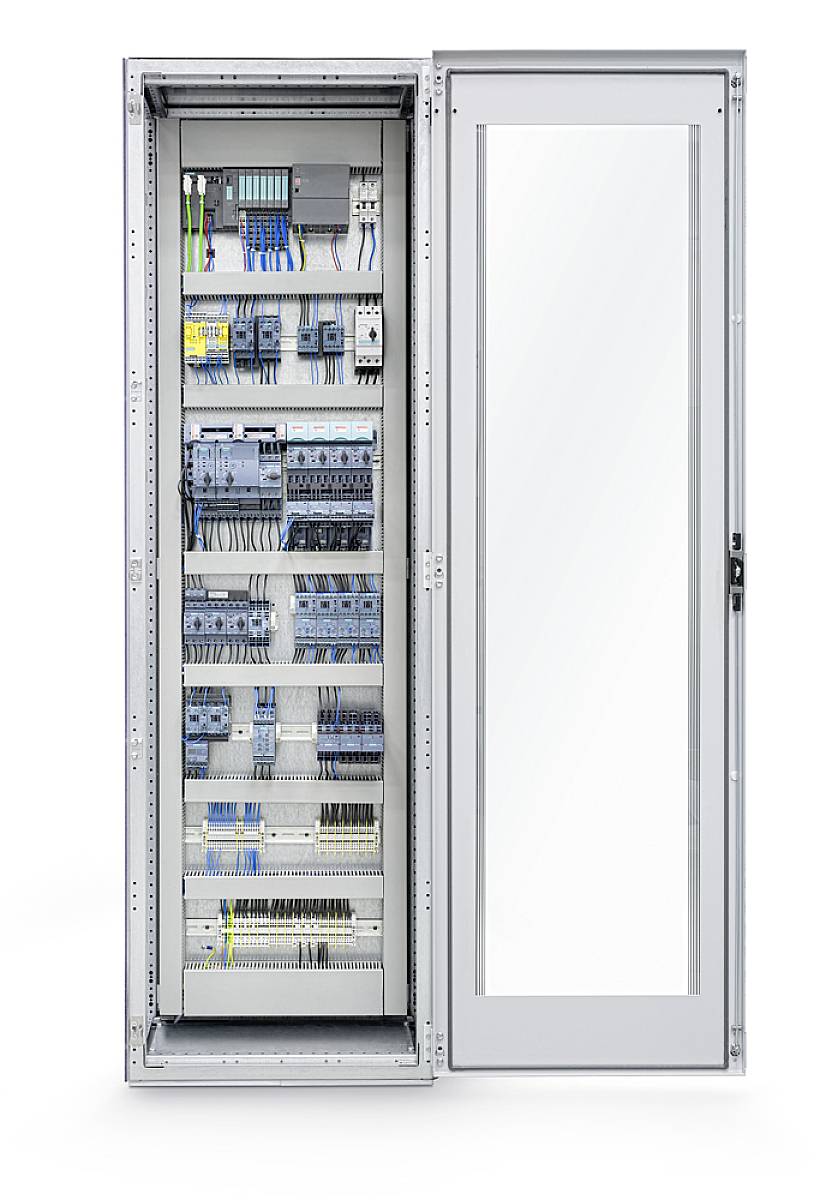

The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
