Adafruit 395 Expansion Board 1 st

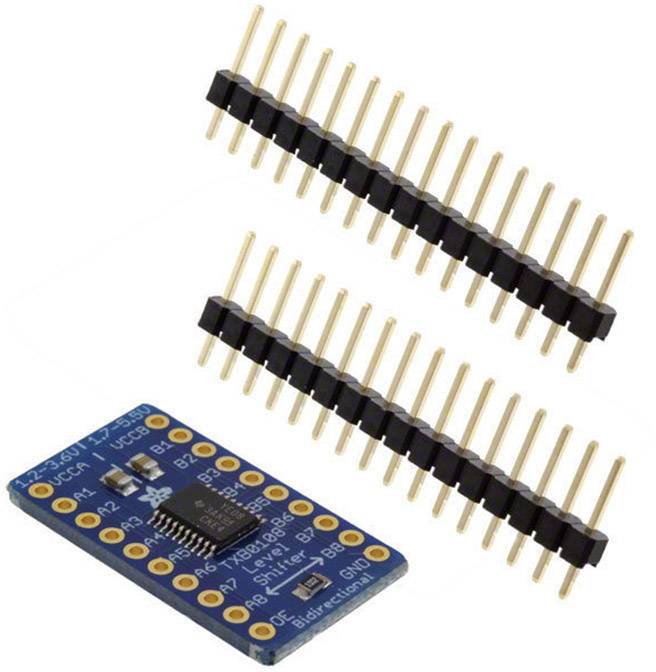

Blå elektronikmodul med mikrochip och kontakter, åtföljd av två dubbla stiftlister.

Liknande avbildning

Datablad (PDF)

Snabb leverans mån. 5 okt.

90 Styck

Antal

Styck

Toal (135,20 kr / stycken)

135,20 kr

exkl. moms

30 dagars öppet köp

Rapportera juridiska problem

8-channel Bi-directional Logic Level Converter - TXB0108

Tekniska specifikationer

Typ av produkt: Expansion Board

Typ av verktyg: Expansions-kort

Innehåll: 1 st

Antal utgångar: 8 x

Driftspänning (min.): 1.2 V

Driftspänning max.: 5.5 V

Dokument & nedladdningar

Datablad

Datablad 1516572 Adafruit 395 Expansion Board 1 st

Bruks- och säkerhetsanvisning

Bruks- och säkerhetsanvisning 1516572 Adafruit 395 Expansion Board 1 st

Beskrivning

Because the Arduino are 5V devices, and modern sensors, displays and flash cards are 3.3V-only, many makers find that they need to perform level shifting/conversion. The TXB0108 bi-directional level converter converts pretty much any voltage to any other voltage and auto-detects the direction. Since this chip is a special bi-directional level shifter it does not have strong output pins that can drive LEDs or long cables. This breakout saves you from having to solder the very fine pitch packages that this chip comes with. Capacitors of 0.1 µF on both sides and a 10 kΩ pull-up resistor on the output enable pin, make the board usable right out of the box.
